Imagine driving on a slick, wet road when suddenly you need to slam on the brakes. It’s a situation that could lead to a dangerous skid, but thanks to the anti-lock braking system (ABS), your vehicle maintains traction, allowing you to steer to safety. ABS technology, a staple in modern vehicles, has been evolving for nearly a century, enhancing driver control during emergency stops.

In this article, they’ll delve into the workings of anti-lock braking systems, from their early mechanical roots to today’s advanced computer-controlled setups. They’ll explore the different types of ABS and how each contributes to vehicle safety. Whether you’re a seasoned driver or a curious enthusiast, understanding ABS is crucial for navigating the roads with confidence.

What Is an Anti-Lock Braking System?

An Anti-lock Braking System, commonly abbreviated as ABS, is a sophisticated safety feature that aims to keep a vehicle’s wheels from locking up and to help drivers maintain control during an emergency stop. Typically, when a vehicle undergoes sudden braking, there’s a risk of the wheels locking up, leading to increased braking distances and a loss of steering control.

Anti-lock brakes operate by continuously monitoring the speed of each wheel with the help of wheel sensors and excitors which generate alternating voltages. These voltages change frequency in proportion to the wheel speed, signaling the ABS control system to take action when necessary. When the system detects a wheel is about to lock, it automatically adjusts the brake pressure to that wheel. This action helps to reduce the chances of skidding while allowing the driver to maintain steering control.

The core principle of the ABS is not to replace but to enhance the vehicle’s conventional braking system. The antilock brakes are integrated to work in tandem with the vehicle’s standard brakes. So instead of having to manually pump the brakes to prevent wheel lockup, drivers with ABS can keep their foot firmly on the brake pedal, and trust the system to modulate the brake force automatically.

But why is ABS such a crucial part of vehicle safety? In essence, ABS addresses the critical issue of tire traction and the balance between stopping power and control. On most road surfaces, but especially on wet and slippery ones, maintaining tire grip is vital for safe driving. ABS helps ensure that tires maintain traction by preventing wheel lock-up which, in turn, contributes to a reduction in stopping distances.

By understanding the role of antilock braking systems, drivers can appreciate their importance in enhancing control during driving extremes. Drivers trained on the proper use of ABS can leverage these systems to navigate roads safely and with heightened confidence.

When Was ABS Invented?

The origins of the Anti-lock Braking System (ABS) trace back to the mid-20th century, a period marked by innovation and forward-thinking in the automotive industry. The system debuted on a Formula One car equipped with four-wheel drive in the 1960s, a significant leap forward in race car technology and driver safety. This groundbreaking use in high-speed motorsport laid the foundation for subsequent developments in consumer vehicles.

Daimler and Mercedes-Benz picked up the baton, pouring resources into the creation of an ABS that could be applied to regular passenger cars. After a series of developments and refinements, Mercedes-Benz showcased their ABS technology to the world in 1978 at the Daimler testing grounds. This event signified a crucial change in automotive safety standards and marked the beginning of a new era for vehicle dynamics.

Since Mercedes-Benz’s pivotal showcase, ABS technology has swiftly transitioned from a high-end feature to a baseline requirement in car safety. Its progress didn’t go unnoticed by legislative bodies. Given its impact on vehicle control and accident prevention, the federal government mandated that all new cars must be equipped with ABS by September 1, 2011. This mandate underscored the system’s importance and ensured its ubiquity in modern vehicles.

ABS has unequivocally improved road safety. It helps drivers avoid crashes by providing crucial traction during emergency stops and reduces instances of tire slippage on perilous road surfaces. Statistics further reinforce ABS’s value; according to a 2009 report by the U.S. Department of Transportation, ABS is instrumental in lowering crash rates and mitigating the severity of accidents.

Vehicle TypeCrash Involvement Rate ReductionCulpable Fatal Involvement Reduction on Adverse RoadsFatal Collisions with Vulnerable Road Users Reduction
Passenger Cars6%12%13%
Light Trucks and SUVs (LTVs)8%Not specified14%

What Is the Need for ABS?

In the ever-evolving landscape of vehicle safety, the Anti-lock Braking System (ABS) stands as a pivotal innovation. ABS addresses the critical need for enhanced control during panic stops, especially in conditions where traction is compromised such as on wet or icy roads. The system operates by preventing the wheels from locking, thus maintaining tractive contact with the road surface and enabling the driver to steer and better control the vehicle. It’s a technology that not only minimizes stopping distances, but also vastly improves directional stability during full-force braking.

Signs Your ABS System Needs Repair

Signs Your ABS System Needs Repair

When it comes to spotting issues with the ABS, certain indicators should never be ignored. One such sign is the ABS warning light illuminating on the dashboard, signaling that there could be problems within the system’s components, including the wheel speed sensors, the control module, or the brake lines.

Timely attention to these signs is crucial for the ABS to function effectively. If the ABS system is compromised, drivers may notice that the vehicle requires longer stopping distances or experiences decreased braking responsiveness. These symptoms can emerge even more during inclement weather scenarios or extreme braking situations where an operational ABS is most needed to modulate brake pressure efficiently and maintain proper brake performance.

ABS systems can exhibit issues through sensory feedback as well. If the brake pedal pulsates or unusual noises emanate when ABS engages, it typically indicates that the system is working to regulate wheel spin, but if these sensations are accompanied by the ABS light, they might point to needing a repair.

Moreover, understanding the specific ABS configuration in a vehicle is essential, as systems can vary widely. From full four-wheel control to rear-wheel or three-channel systems, knowing how your ABS operates can inform drivers of the system’s full capabilities and its condition.

Maintaining an ABS system is not just about responding to warning lights; it involves a proactive approach. This includes adhering to the recommended maintenance schedule provided by the vehicle’s manufacturer. Regular maintenance tasks like brake fluid replacements and system checks can extend the longevity of the ABS and ensure its reliability when it matters most. Ignoring such routines could lead to an impaired ABS that may not be able to adjust brake pressure appropriately, emphasizing why understanding and caring for your ABS is not only a necessity for vehicle maintenance but also a cornerstone of modern automotive safety.

What Are the Main Components of ABS?

Anti-lock Braking Systems (ABS) are comprised of integral parts that function synergistically to prevent wheel lockup and maintain vehicle control under harsh braking conditions. At the core of ABS technology lie four critical components: speed sensors, valves, a pump, and a controller.

Speed Sensors are instrumental in monitoring wheel velocity, detecting rapid decelerations indicative of a wheel on the brink of locking. These sensors relay real-time data to the ABS controller, a sophisticated electronic control unit (ECU), initiates corrective measures if required.

Valves, situated in the brake line, play a pivotal role in regulating the hydraulic pressure applied to the brakes. During ABS engagement, these valves can assume three positions:

  • Open — allowing full brake pressure
  • Closed — blocking pressure to prevent wheel lockup
  • Modulation phase — releasing some brake pressure to provide rolling traction

The Pump in the ABS is what restores the pressure to the hydraulic brakes after the valves reduce it. This allows the driver to continue attempting to halt the vehicle without losing control.

Lastly, the Controller (ECU) is the brains of the operation, parsing input from the wheel speed sensors and rapidly signaling the valves to modulate braking pressure. It’s precisely this complex communication and action process between the components that enhance vehicle control during abrupt stops.

The ABS’s operative principle is that a tire with traction offers more control over stopping distance and steering ability. Even in the most urgent scenarios, the system meticulously adjusts brake pressure to avert wheel lock-up, ensuring the driver doesn’t lose traction and can steer to safety.

The ABS harnesses advanced technology to safeguard passengers and vehicles alike by granting superior handling during potential skid occurrences. This safety mechanism has become a standardized essential in modern-day automotive systems, reflecting its importance in vehicle dynamics and passenger security.

How Does ABS Work?

A Breakdown of the Anti-Lock Braking System

The Anti-Lock Braking System, or ABS, is a critical safety feature in modern vehicles designed to prevent wheel lockup during emergency braking scenarios. Preventing wheel lockup is crucial because it allows the driver to maintain steering control, which can be the difference between safely navigating out of a potential accident and losing control of the vehicle.

When a driver encounters an obstacle and applies the brakes forcibly, ABS springs into action. Speed sensors attached to each wheel constantly monitor the rotational speed. These sensors feed the information back to the Electronic Control Unit (ECU), which acts as the ABS’s brain. If the ECU detects a wheel slowing down at an abnormal rate, indicating a potential lockup, it initiates a rapid and precise process of brake modulation.

Here’s the intricate dance that follows: ABS uses a system of valves to manage brake fluid pressure. These valves have three positions; they can open to allow full brake pressure, close to block pressure to the wheel, and release some pressure to help the wheel regain traction and continue rotating. This system of controlled pressure modulation happens in milliseconds and can cycle several times per second to ensure optimal wheel spin and vehicle control.

The Role of Individual Components

Each part of the ABS plays a pivotal role in vehicle safety:

  • Speed Sensors: These are the watchful eyes of the system, keeping a constant check on how fast the wheels are turning.
  • Valves: With a command from the ECU, the valves in the brake lines control the air pressure applied to each brake.
  • Pump: If the brake pressure is reduced to prevent lockup, the pump restores the pressure so that the driver can continue to slow down.
  • Electronic Control Unit (ECU): This high-tech component processes all the data and coordinates the ABS response.

Maintaining these components is paramount as they directly impact the effectiveness of ABS. Tires must be properly inflated and in good condition to enable optimal performance of ABS. Worn brake linings, as well as air or dirt in the brake fluid, often lead to ABS malfunctions. Regular inspections and maintenance can help catch these issues early on.

What Automotive Technicians Need to Know

What Automotive Technicians Need to Know

Automotive technicians carry the responsibility of ensuring that vehicles operate safely and efficiently, which includes an in-depth understanding of the Anti-lock Braking System (ABS). Familiarity with ABS is essential as it’s a standard safety feature on nearly all new vehicles. Technicians must be adept at diagnosing, maintaining, and repairing ABS to ensure optimal vehicle safety.

Given the complexity of modern vehicles, technicians benefit from formal training programs that cover a wide array of automotive systems, including ABS. Such programs combine theoretical knowledge with hands-on experience, preparing technicians for a career in various automotive settings. During these programs, students learn critical skills spanning from engine service and repair to electronic systems and powertrains.

Specifically focusing on ABS, technicians delve into the workings of speed sensors, valves, the pump and the Electronic Control Unit (ECU). They must understand how these components interact to prevent wheel lockup and maintain steering control during sudden stops. Troubleshooting ABS issues requires a systematic approach, as even minor malfunctions can compromise vehicle safety.

Technicians must also stay current with emerging technologies and updates in ABS systems. With advances in vehicle safety continually evolving, ongoing education is a crucial component of a technician’s career. Knowledge of the latest ABS variants, including those integrated with traction control systems, is integral to providing comprehensive service.

With safety being a paramount concern, a technician’s role extends beyond repair and maintenance, becoming an advocate for road safety through proper vehicle care. Offering services that range from regular ABS inspections to detailed repairs, technicians serve as a vital link between advanced automotive technology and driver peace of mind.

The role of automotive technicians is critical in fostering a safe automotive environment for all road users. As vehicle technology advances, so does the importance of their expertise, precision, and dedication to excellence in their field.

Advantages of Anti-Lock Braking System (ABS)

Anti-lock Braking Systems (ABS) provide significant benefits that enhance both vehicle safety and driver control. Understanding these advantages is crucial for drivers and automotive professionals alike, assuring the best possible road safety outcomes.

Firstly, ABS prevents the wheels from locking during emergency stops, enabling drivers to maintain steering control. This is particularly beneficial in adverse road conditions where traction is compromised. Drivers find this feature indispensable as it allows them to maneuver around potential hazards while braking heavily.

Additionally, ABS systems are designed to optimize the braking pressure, which often results in reduced stopping distances, particularly on wet and slippery roads. This reduction of stopping distance can be the critical factor in avoiding collisions.

Tire longevity is another notable advantage. Since ABS prevents wheels from locking and skidding, tires experience more even wear, which prolongs their usable life. Improved tire health translates into better performance and safety, as well as potential cost savings over time.

The benefits of ABS stretch into vehicle maintenance as well. By mitigating harsh braking actions, ABS systems help to reduce wear on brake pads and brake discs. This results in fewer replacements, diminished maintenance costs, and more reliable braking performance. From a cost-efficiency standpoint, these factors can also contribute to lower insurance premiums, as insurers often recognize the safety benefits of ABS.

Integration with other safety features, such as Traction Control Systems (TCS), showcases the adaptability of ABS. The shared infrastructure between ABS and TCS makes it simpler and more cost-effective for manufacturers to implement these critical safety systems in new vehicles.

Overall, it’s evident that the incorporation of ABS in vehicles brings forth a harmonized blend of control, durability, and safety. This harmony is especially poignant in arduous driving conditions where the distinction between a close call and an accident can hinge on the ability of a vehicle’s brakes to perform optimally.

Disadvantages of Anti-Lock Braking System or ABS

While the anti-lock braking system (ABS) provides significant safety benefits, it’s not without drawbacks. Vehicles equipped with ABS may experience less effectiveness in certain road conditions. On surfaces like ice, snow, and gravel, ABS may struggle to reduce the vehicle’s stopping distance effectively. These conditions can make it harder for the vehicle to stop swiftly, even with ABS technology at work. It’s in such unique scenarios that the limitations of ABS technology are most visible.

Additionally, the complexity of ABS systems can lead to higher costs. The intricate design of the ABS requires more parts and labor to install and maintain. The presence of wheel speed sensors and hydraulic units means that any failure in the system can be costly to diagnose and repair. This is especially true as vehicles age and parts become more susceptible to wear and tear. Vehicle owners should be prepared for these potential higher maintenance costs.

Moreover, over-reliance on the system may negatively impact driving behavior. While ABS is designed to help maintain control during emergency braking, some drivers may develop a false sense of security. This overconfidence might encourage riskier driving behavior, under the assumption that ABS will compensate for excessive speed or poor decision-making in hazardous driving conditions.

ABS systems require regular inspection and maintenance to ensure they’re functioning properly. Failure to maintain the system can result in malfunction during critical moments, which can be dangerous. Regular checks of the ABS light on the dashboard, which signals issues within the system, can be pivotal to early detection of problems.

Another point of concern is that while ABS helps in maintaining steering control during an emergency stop, the driver must still remain alert and possess the skill to navigate around obstacles. The technology does not replace the need for responsible driving practices; it simply aides in improving vehicle safety.

Drivers should also be aware that ABS systems can occasionally cause unexpected brake pedal feedback, which may be unsettling for those not accustomed to it. This feedback is normal as the system modulates the brake pressure to prevent the wheels from locking up, but it can take some getting used to.

Anti-Lock Brake Types

Anti-Lock Brake Types

Four-Channel, Four-Sensor ABS

The four-channel, four-sensor ABS system represents the pinnacle of anti-lock braking technology. This setup allows for the most precise control by individually monitoring and adjusting the braking pressure of each wheel. In the event of a skid, the four-channel system can apply or release pressure to each wheel independently, ensuring optimal traction and stability. Vehicles equipped with this kind of ABS provide superior handling during emergency braking situations, especially on mixed surface conditions.

The infrastructure of a four-channel, four-sensor ABS consists of a dedicated sensor at each wheel and a corresponding set of valves to manage brake force. This arrangement affords drivers confident maneuverability and significantly improves the safety features of the vehicle. The individualized attention to each wheel means that even if one tyre encounters a slick spot, the others will adjust to maintain as much control as possible.

Three-Channel, Three-Sensor ABS

The three-channel, three-sensor ABS system is commonly found on older models and some light trucks. This system uses a slightly less intricate design than its four-channel counterpart. With two sensors located on the front wheels and one sensor attached to the rear axle, this type of ABS can control the front wheels individually while the rear wheels are managed simultaneously.

This middle-ground setup still offers substantial safety benefits by preventing the rear wheels from locking up together and allowing for some differential control on the front wheels. In practical terms, this configuration is beneficial during scenarios where the vehicle’s rear end is at risk of skidding. Fixed to a common axle, both rear wheels receive equal modulation from the ABS, which helps preserve the vehicle’s stability but doesn’t offer the precision control of the four-channel system.

One-Channel, One-Sensor ABS

The one-channel, one-sensor ABS is the most basic version and is mainly found on trucks or older vehicles. As suggested by its name, there’s a single sensor attached to the rear axle of the vehicle. This system focuses solely on preventing lockup of the rear wheels, which are typically more prone to skidding during heavy braking operations.

Even though it’s a simplified version of the ABS, the one-channel system still plays a crucial role in enhancing the safety for certain types of vehicles. It primarily aims to prevent fishtailing, a situation in which the rear of the vehicle sways out of line with the front. The one-channel ABS system won’t offer the nuanced control of front wheels but ensures that hard stopping doesn’t result in a complete loss of traction at the rear, providing a baseline level of stability when braking hard.

Anti-Lock Brake Diagram

Anti-Lock Brake Diagram

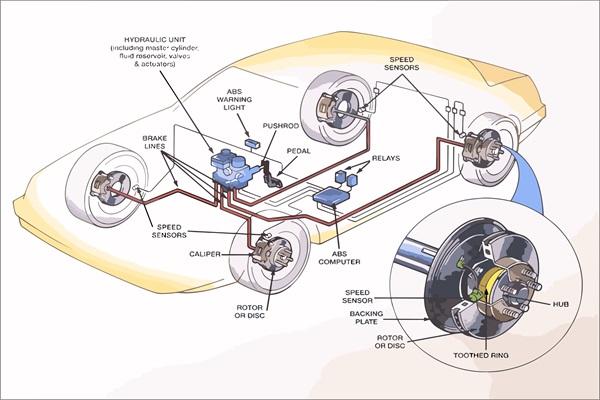

Understanding the layout of an anti-lock braking system (ABS) can be quite complex without a visual aid. Schematic diagrams and block forms are key to grasping the intricate workings of ABS. Figure presents a detailed look at these components, guiding drivers through the maze of technology that consistently works to keep them safe on the road.

In the heart of the ABS lies wheel sensors and excitors. These critical parts function in tandem, generating alternating voltages with frequencies matching the wheel’s speed. This correlation is pivotal for an ABS as it allows the system to accurately monitor the wheel’s activity, braking effectively when a potential lock-up is detected.

A close inspection of these diagrams reveals the precise placement of the ABS within the vehicle. With the primary objective of enhancing safety, the ABS strategically positions its sensors to ensure optimal performance under sudden, harsh braking scenarios. Such data is vital for drivers who wish to better understand their vehicle’s braking system and possibly undertake measures like changing an ABS sensor or resetting the system.

For the latter, a simple yet effective way exists to reset the ABS. By disconnecting the positive cable and holding the brake pedal until the car’s electrical system discharges, one can initiate sensor changes or troubleshooting. This method is essential for maintaining the high standard of vehicle safety that ABS systems provide.

Through a combination of mechanical expertise and technological sophistication, ABS diagrams serve not just as an informative illustration but as a beacon of reliability for all those who find solace in the enhanced safety features of their vehicles. These diagrams effectively bridge the gap between the complexity of a mechanic’s world and the clarity needed by everyday drivers.

What Other Types of Driving Conditions Can Cause the ABS to Engage?

Certain driving conditions consistently trigger the anti-lock braking system (ABS) beyond emergency scenarios. Hitting bumps, navigating railroad tracks, or maneuvering across slick surfaces during braking might prompt a wheel to halt its rotation, calling the ABS into action. In such moments, drivers’ instincts might lead them to lessen the pressure on the brake pedal, inadvertently increasing their stopping distance.

It’s crucial to recognize the most common driver error when dealing with ABS engagement: withdrawing pressure from the brake pedal. Instead, maintaining or intensifying pressure is essential to allow the ABS to function correctly, thereby averting lengthier stopping times and potential accidents.

Instances when the ABS activates without cause are typically linked to faulty wheel speed sensors. A sensor erroneously indicating zero MPH can trigger the system without logging any diagnostic trouble codes. If there’s suspicion that the ABS is engaging improperly, a proper road test with a qualified technician may reveal the issue.

ABS plays a critical part in controlling traction, particularly on wet or snowy surfaces where the risk of skidding is heightened. Given that the tire’s friction coefficient drops on such terrains, the risk of wheel lock-up is substantial, presenting a tangible danger. With its capacity to modulate brake application over ten times per second, an ABS significantly enhances traction control, preventing the wheels from locking.

Ultimately, the ABS is engineered to remain active without manual input from drivers. In slippery conditions, the recommended course of action—for ensuring that the system operates to its full potential—is to firmly press or even increase pressure on the brake pedal. Be particularly mindful of longer stopping distances during these instances.

What if my ABS engages when it shouldn’t?

Should your ABS engage unexpectedly it’s vital to have the system checked by a professional. A well-functioning ABS is crucial for maintaining control during emergency braking especially on less than ideal road surfaces. Remember that while ABS can significantly improve safety it’s not a substitute for safe driving practices. Always adjust your speed according to the conditions and ensure your vehicle’s braking system is regularly serviced. Trusting your ABS means understanding how it reacts so you can stay safe on the roads no matter what challenges you may face.

Frequently Asked Questions

What causes the ABS to activate unexpectedly?

Unexpected ABS activation can occur when driving over bumps or slick surfaces which can cause wheel speed sensors to send incorrect signals. Malfunctioning sensors or an issue with the braking system can also trigger the ABS unnecessarily.

Should I maintain pressure on the brake pedal if ABS engages?

Yes, maintaining or increasing pressure on the brake pedal is essential when ABS engages. This allows the system to work correctly and helps prevent longer stopping distances.

What should I do if the ABS activates for no apparent reason?

If the ABS activates without cause, it’s recommended to perform a road test with a qualified technician to diagnose any issues with the wheel speed sensors or the ABS system itself.

How does ABS help on wet or snowy surfaces?

ABS helps control traction on wet or snowy surfaces by preventing wheel lock-up. This maintains steering control during hard braking, which is critical for safe driving in slippery conditions.

How do I ensure the ABS works effectively in slippery conditions?

In slippery conditions, to ensure the ABS works effectively, you should firmly press or increase pressure on the brake pedal. This allows the system to modulate brake pressure and prevent wheel lock-up.
